Gas Fire | GD3

The GD3 indoor gas fire combines innovative design and efficient performance to deliver an extraordinary appliance for dividing end wall applications. With glass to the front, back and one side, the GD3 also has an integrated steel hearth which enables easy installation. With direct venting, flues can be run vertically or horizontally allowing maximum flexibility for installation in your home. The GD3 is available in three sizes with three firebed options.

Architecturally-inspired minimalist design
Stunning flame effect
Super-efficient with low running costs
Hand-crafted firebed options
Stress-free wall switch operation
Optional remote control

Specification | GD3

The GD3 is available in three sizes: 1200, 1400 & 1600, with three firebed options.

	1200	1400	1600
Gas Type: Natural Gas or LPG	✔	✔	✔
Gas Controller Pack: Sit Sigma regulator & Sit controller	✔	✔	✔
Gas Connection: 3/8 soft copper pipe (3/8 flare provided with gas controller)	✔	✔	✔
Natural Gas Input: (MJ/h on high setting)	25	28	38
LPG Input: (MJ/h on high setting)	20	25	30
Estimated Heat Output: (kW on high setting)	7.2	8.2	9.4
Power Supply: 230V 50Hz	✔	✔	✔
Fixing Type: 4 x M6 bolts through base frame slots into the floor (adjustable)	✔	✔	✔
Flue Termination: Vertical or horizontal	✔	✔	✔
Clearances: 25mm from combustible materials and 5mm from non-combustible	✔	✔	✔
Flue Size: 100-150mm	✔	✔	✔
Warranty: 5 years on firebox, 2 years on other components	✔	✔	✔

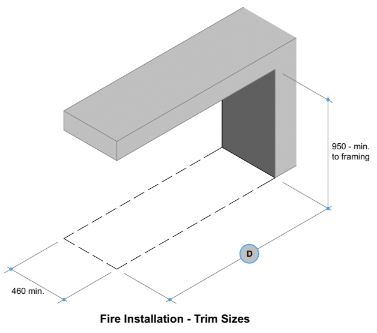

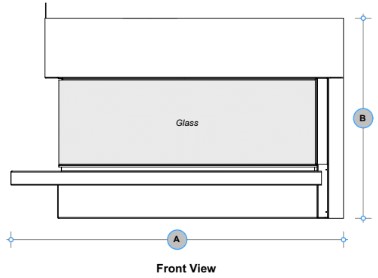

Dimensions (mm)

Model Size	A	B	C	D
1200	1555	935	550	1395
1400	1755	935	550	1595
1600	1955	935	550	1795

Firebed Options

River Rocks

Beach Driftwood

Forest Logs

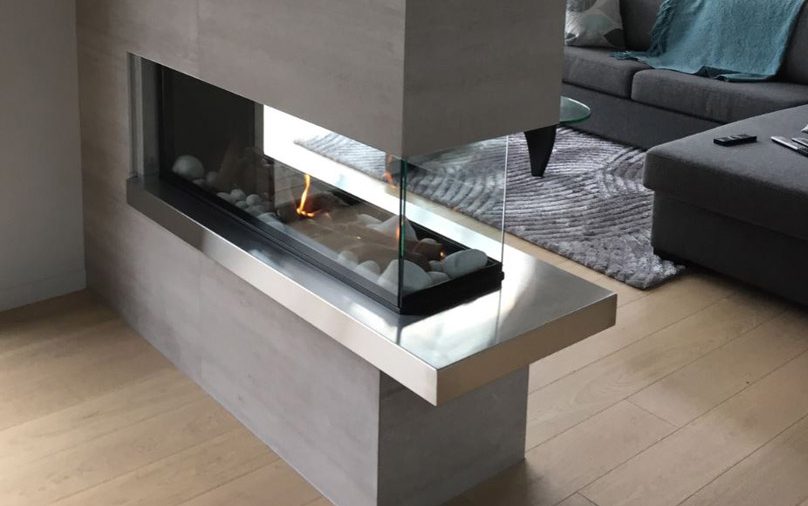

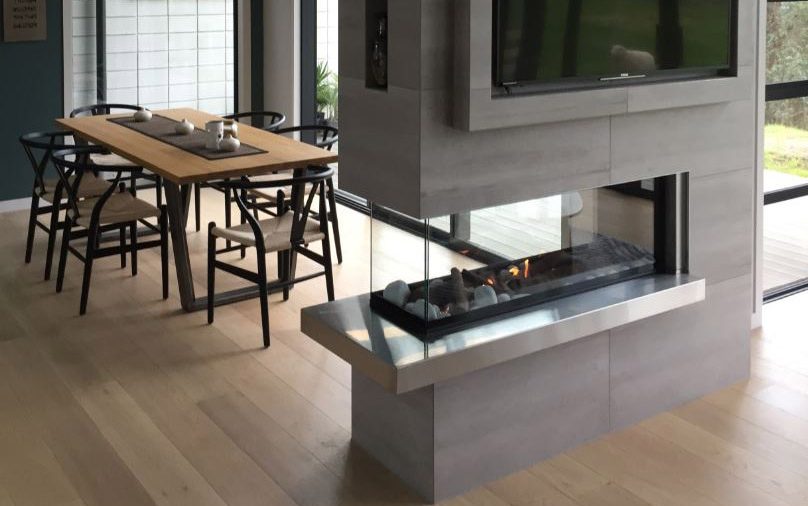

Dimensions are shown for the GD3 Glass Left model. Glass Right dimensions are mirrored. Further details can be found in the Technical Information.
