Gas Fire | GD8

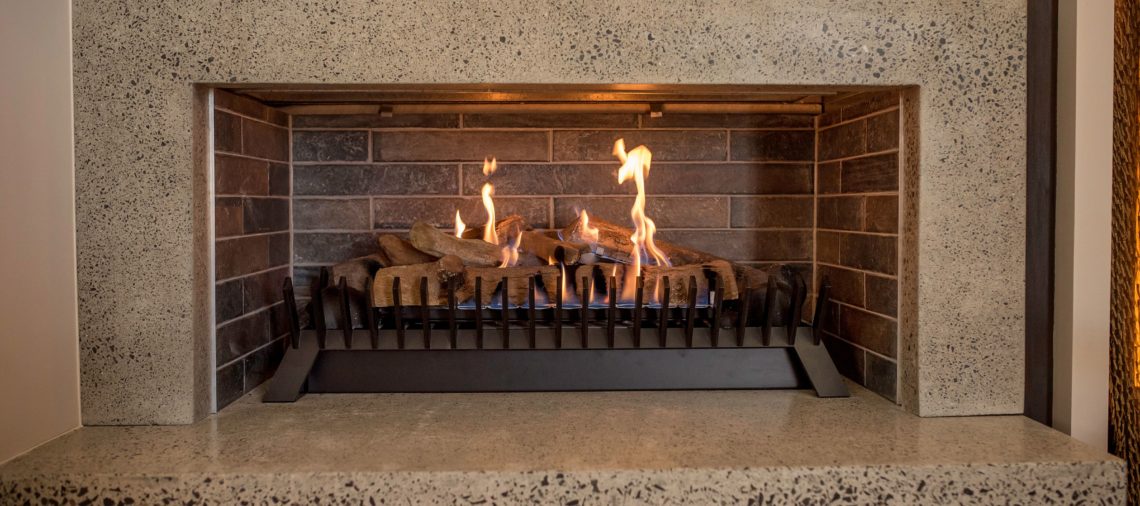

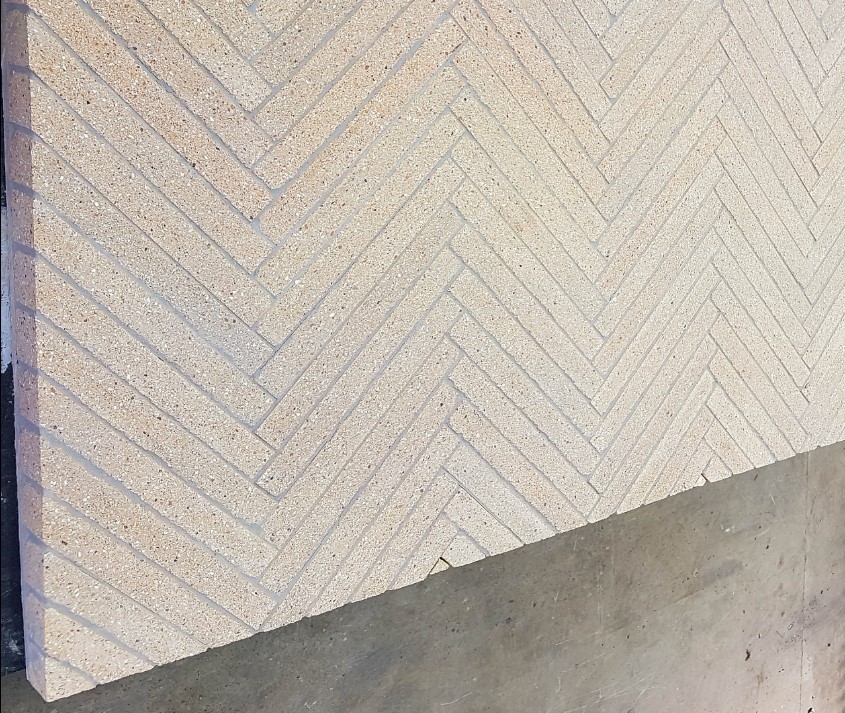

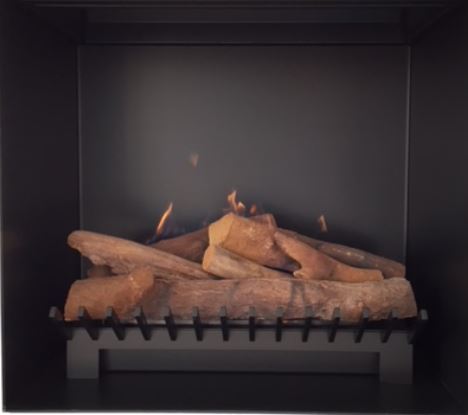

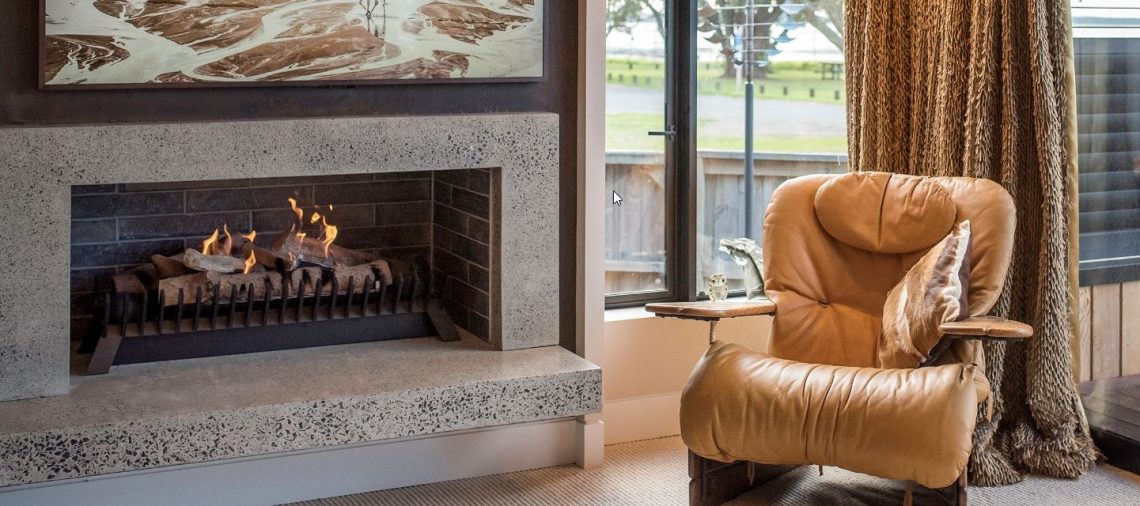

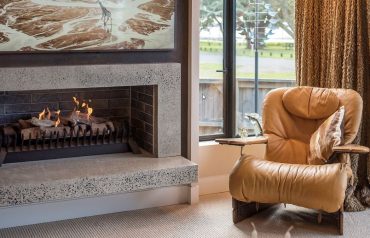

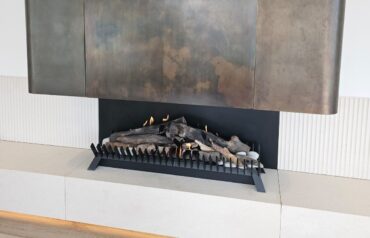

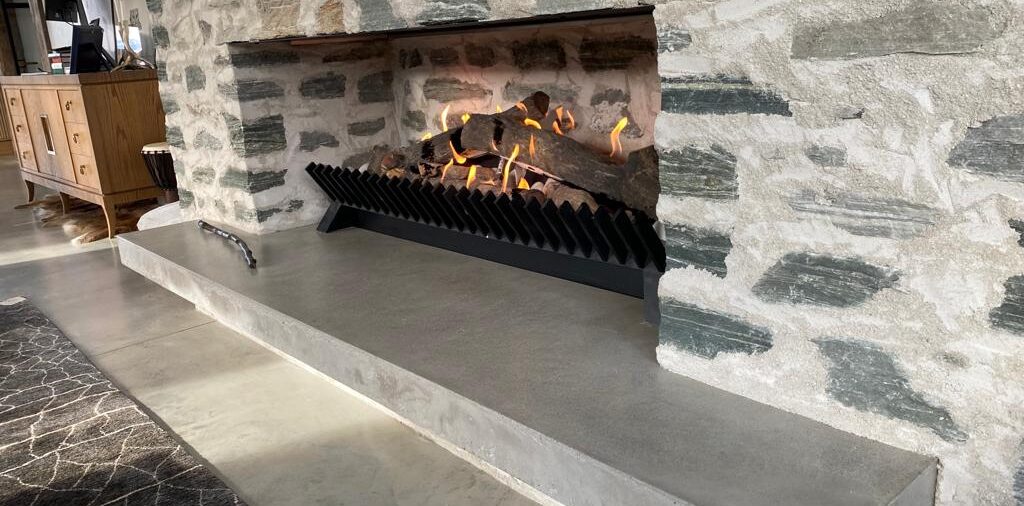

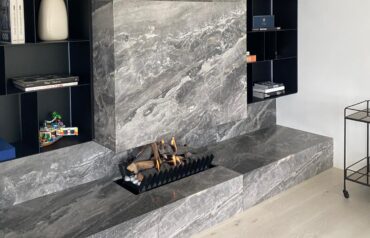

The GD8 is an open-fronted traditional look indoor gas fire. The firebox can be lined with black steel, fire brick or made ready for your own choice of tiles. The GD8 is available in three sizes with recessed or exposed burner options.

Architecturally-inspired minimalist design
Stunning flame effect
Hand-crafted firebed options
Stress-free wall switch operation
Optional remote control

Specification | GD8

The GD8 is available in three sizes: 1200, 1400 & 1600, with recessed or exposed burner options.

	1200	1400	1600
Gas Type: Natural Gas or LPG	✔	✔	✔
Gas Controller Pack: Sit Sigma regulator & Sit controller	✔	✔	✔
Gas Connection: 3/8 soft copper pipe (3/8 flare provided with gas controller)	✔	✔	✔
Recessed Burner Input (Natural Gas): (MJ/h on high setting)	45	55	65
Recessed Burner Input (LPG): (MJ/h on high setting)	35	45	55
Exposed Burner Input (Natural Gas): (MJ/h on high setting)	65	65	70
Exposed Burner Input (LPG): (MJ/h on high setting)	55	55	65
Estimated Heat Output: (kW on high setting)	4	4.7	5.2
Power Supply: 230V 50Hz	✔	✔	✔
Fixing Type: 4 x M6 bolts through base frame slots into floor (adjustable)	✔	✔	✔
Flue Size: 300-350mm	✔	✔	✔
Clearances: 25mm from combustible materials and 5mm from non-combustible	✔	✔	✔
Warranty: 5 years on firebox, 2 years on other components	✔	✔	✔
