Wood Fire | WD1

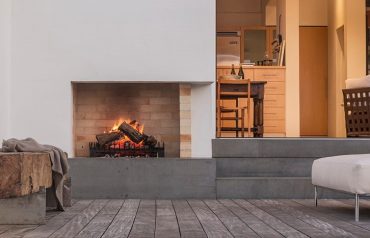

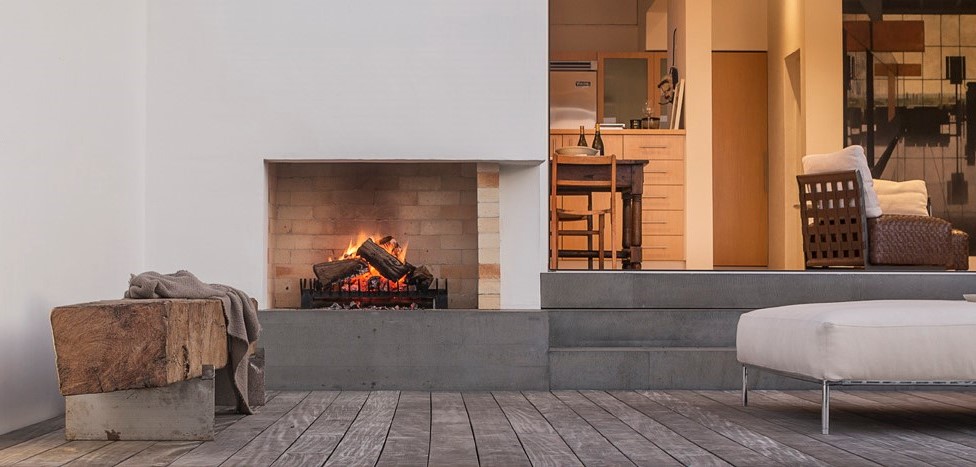

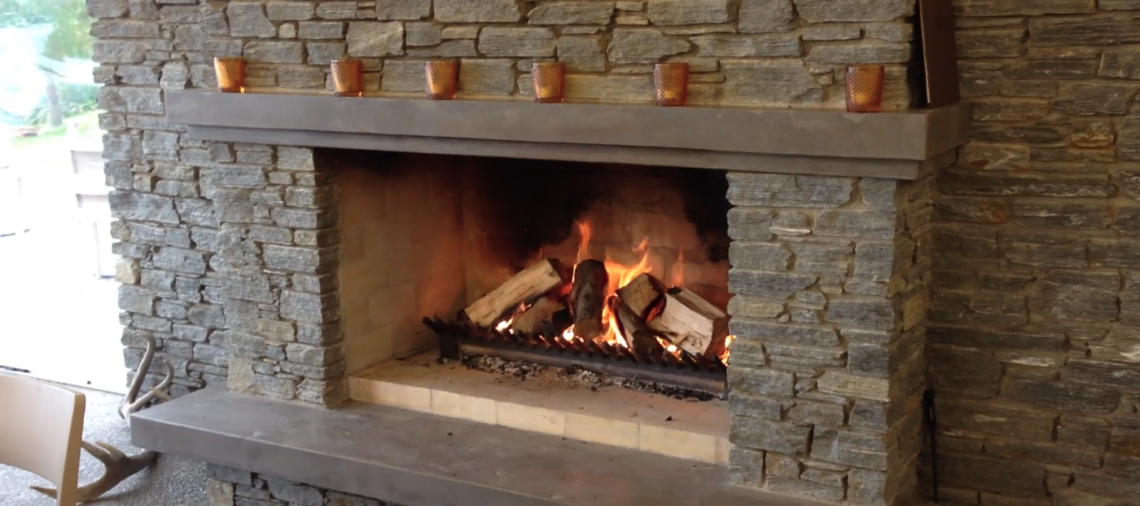

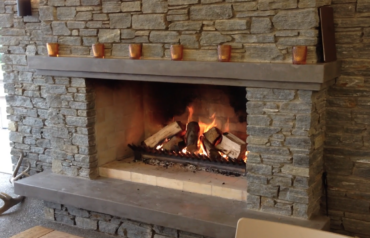

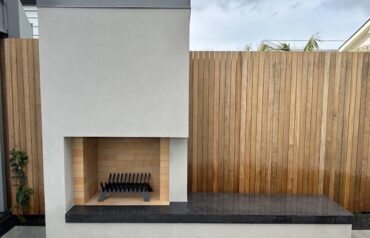

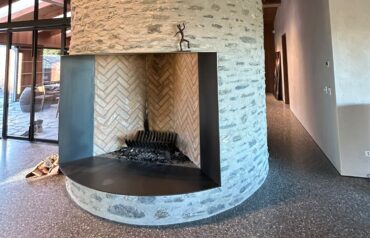

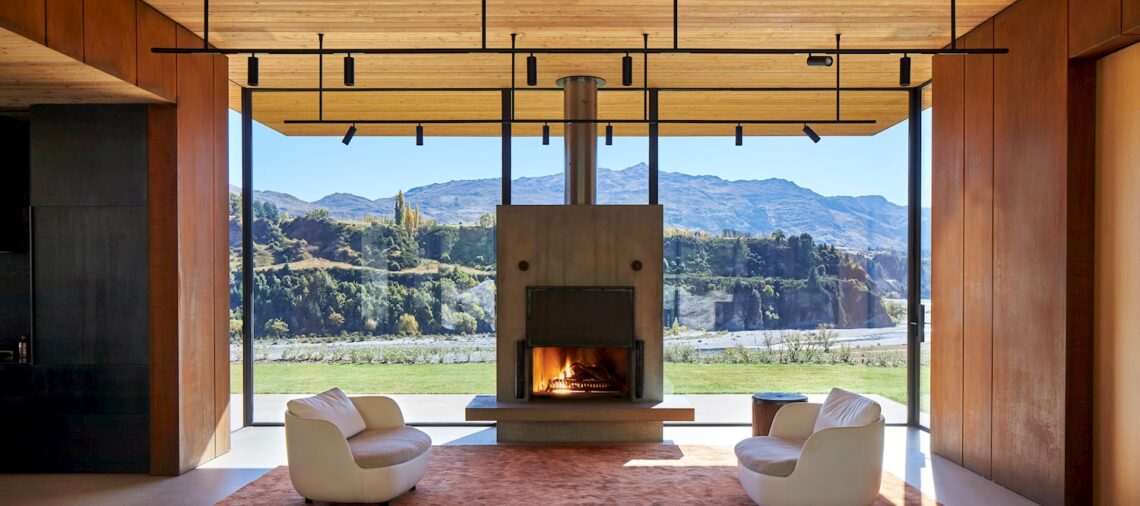

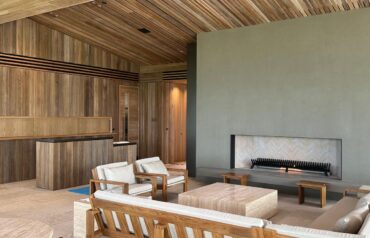

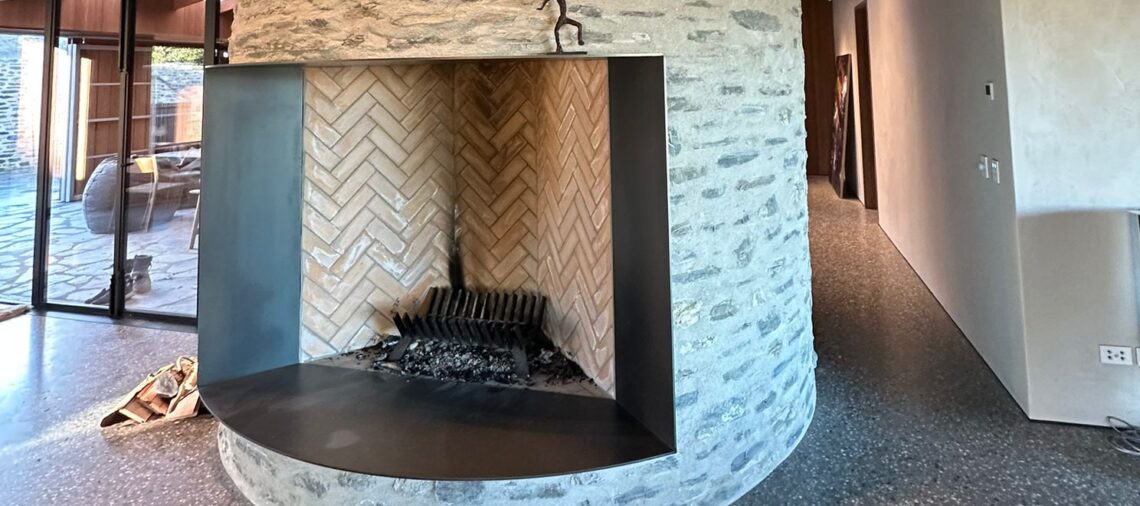

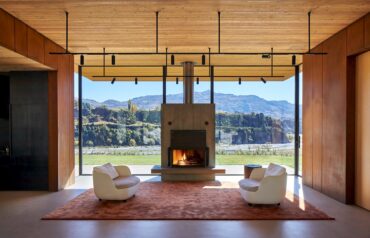

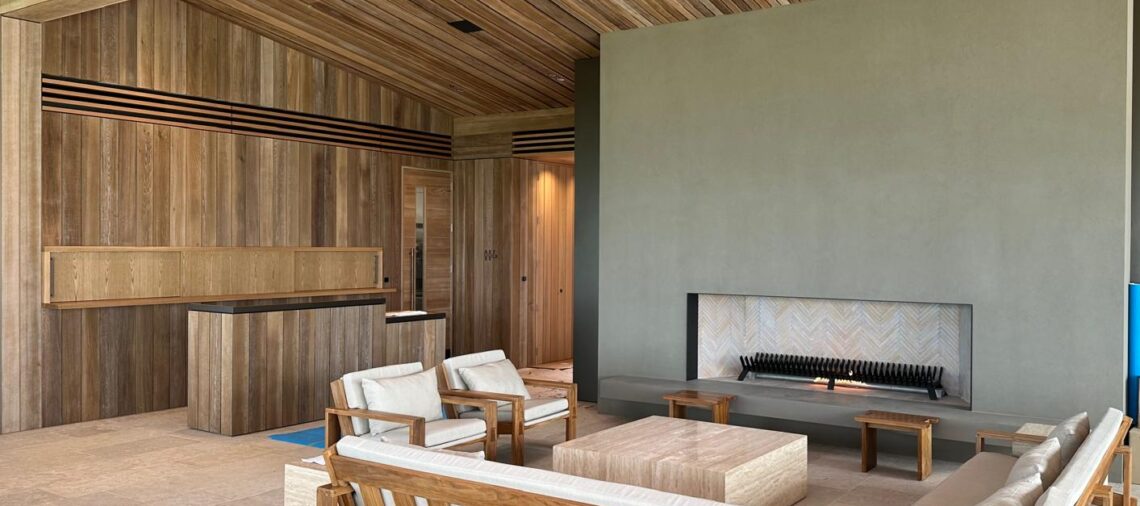

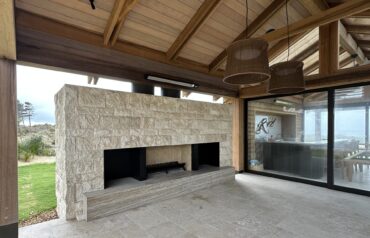

Whether suspended from a ceiling or enclosed on up to three sides, the WD1 is a unique open wood fire design allowing for a variety of indoor and outdoor installation options. The WD1 comes with two grate options – deep or shallow. The gather is fitted up inside the cavity structure and the optional fire grates sit on the hearth below.

Architecturally-inspired minimalist design
Adjustable char-grilled effect BBQ grills
Easy to operate, electronically controlled gas log ignitor

Specification | WD1

The WD1 is available in three sizes: 800, 1000 & 1300.
Each size has four configurations to choose from:
1. Open at the front.
2. Open at the front and right hand side.
3. Open at the front and left hand side.

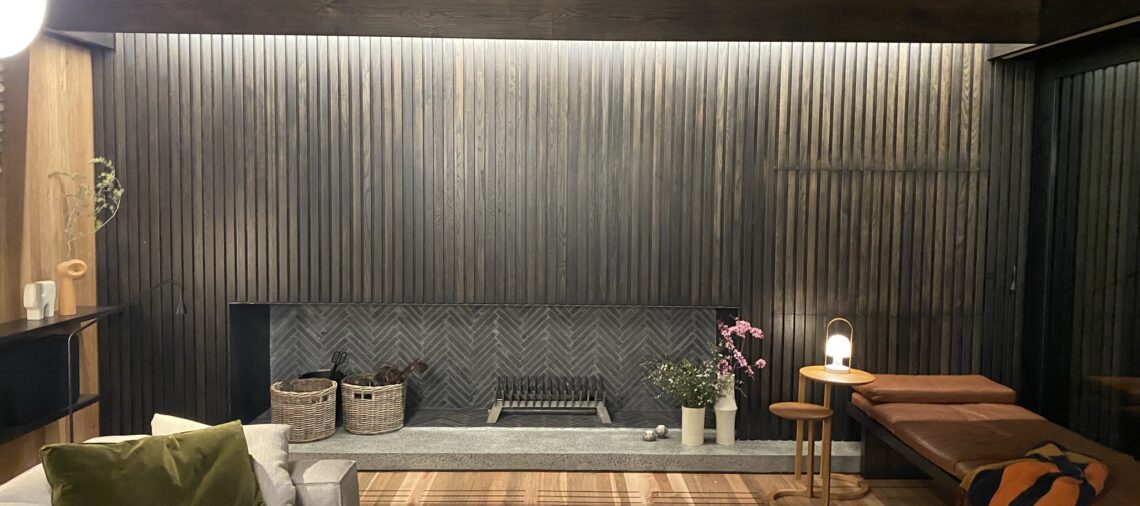

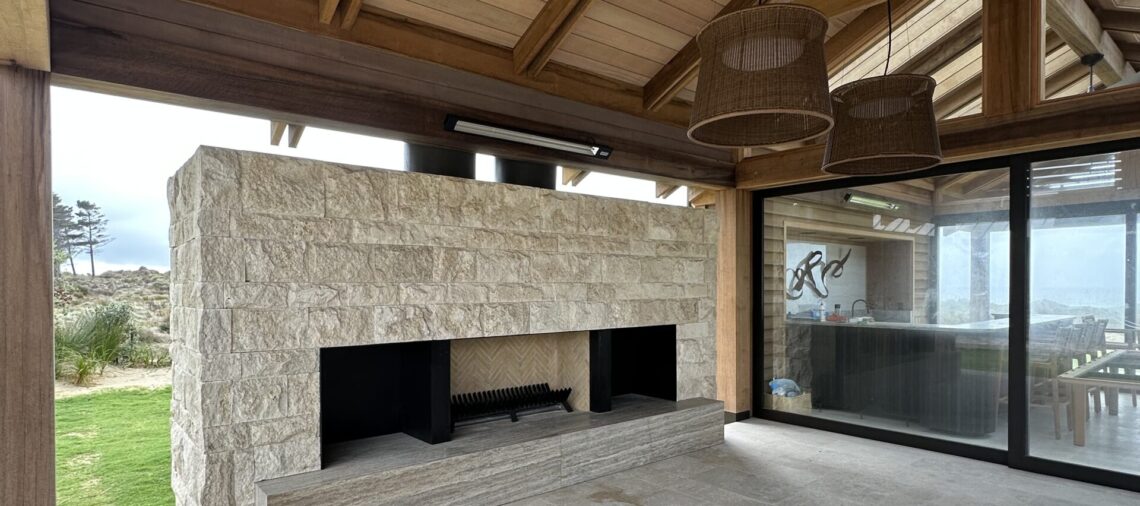

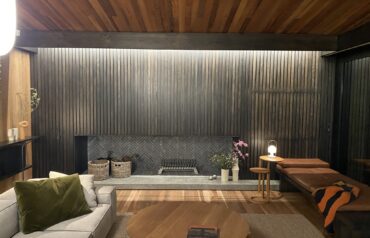

4. Open at the front and both left and right hand sides.

	800	1000	1300
Fuel: Wood	✔	✔	✔
Fire Brick : Refractory cement	✔	✔	✔
Installation: In either timber frame or concrete/block	✔	✔	✔
Steel Frame: For installation in timber frame	✔	✔	✔
Gather Fixing Type: 4 x M8 bolts thru side brackets into sides	✔	✔	✔
Steel Supporting Frame Fixing Type: 4 or 6 x M8 bolts/screws, depending upon model and cavity type	✔	✔	✔
Flue Termination: Vertical	✔	✔	✔
Flue Size: 300-400mm	✔	✔	✔
Warranty: 5 years on firebox, 2 years on other components	✔	✔	✔

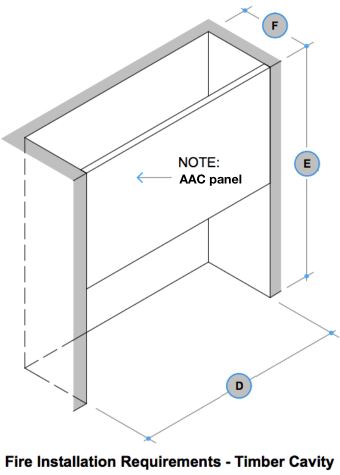

Dimensions (mm)

Model Size	A	B	C	D	E	F
800	1314	2077	790	1344	2400	795
1000	1514	2077	790	1544	2400	795
1300	1814	2077	790	1844	2400	795

Options

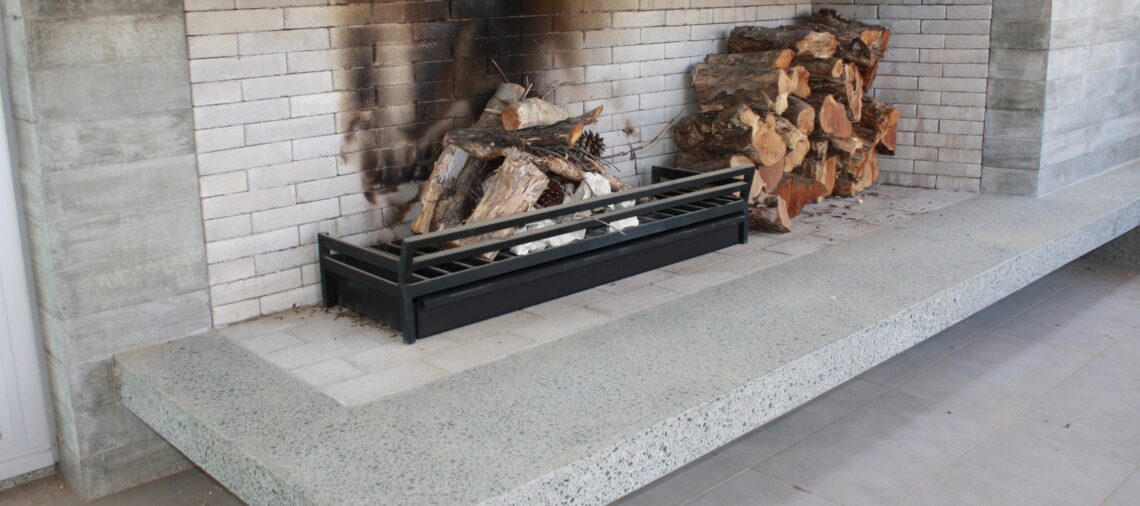

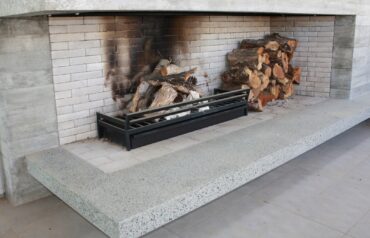

Deep Grate

Shallow Grate

Tube Log Ignitor

Flamethrower Log Ignitor

BBQ Grill/Hotplate

Trim sizes indicated are for a timber installation with a steel frame. Trim sizes for installation in concrete/block are slightly smaller. Please refer to the technical information for more detail.

Technical Information
